Security Policy as Code (SPaC): Shifting Security Left with NeuVector

Shifting security left, a practice that integrates security into the development process from the early stages, is at the core of DevOps, DevSecOps, and modern Cloud Native practices. However, implementing it is not always easy and straightforward, and if the implementation is not done correctly, it can lead to friction between security and development teams and slow down the development process. NeuVector's Security Policy as Code (SPaC) feature is designed to address these challenges by providing a way to define security policies in code, which can then be shared with development teams to ensure that security is integrated into development, CI/CD pipeline, and testing processes.

In the previous section, we have seen how NeuVector can enforce security policies using the Discover, Monitor, and Protect modes. NeuVector's SPaC feature allows you to define these policies in a declarative way using YAML files. For example, when we deployed WordPress, NeuVector automatically created a group with a set of observed rules. We added a new rule to whitelist the HTTPS/SSL connection, and we considered that these are the final set of rules that we want to enforce. We can then export it to a YAML file and share it with the development team to ensure that the same enforcement is consistently applied across all environments, especially in the earlier stages of the SDLC, and that the same will be shipped with the application.

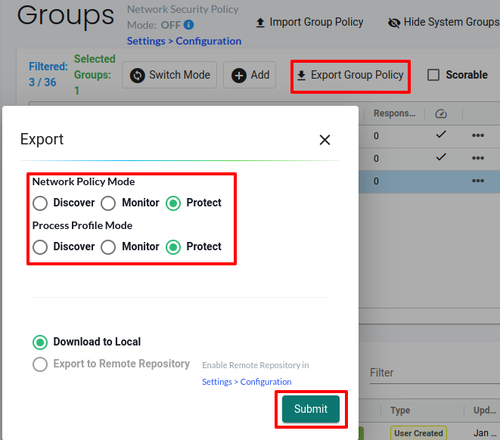

To do this, using the UI, navigate to the Groups tab, select the group you want to export the rules from, click on Export Group Policy, select the mode (Discover, Monitor, or Protect), and click on Submit. This will generate a NvSecurityRule CRD manifest.

Following is a partial example of an NvSecurityRule CRD manifest exported for the nv.my-wordpress.wordpress group that specifies the security policies, including allowed network traffic (ingress and egress), permitted processes, and other security settings like DLP and WAF.

# Define the API version and the type of resource
apiVersion: neuvector.com/v1
kind: NvSecurityRule

# Metadata about the security rule
metadata:
  # Name of the security rule
  name: nv.my-wordpress
  # Kubernetes namespace where the rule is applied
  namespace: my-wordpress

spec:
  # Enable Data Loss Prevention (DLP) features
  dlp:
    status: true
  # Enable Web Application Firewall (WAF) features
  waf:
    status: true

  # Define outbound (egress) network traffic rules
  egress:
    # Allow outgoing DNS traffic
    - action: allow
      applications: [DNS]
      name: allow-dns
      ports: any
      selector:
        criteria:
          - key: service
            op: =
            # Match the CoreDNS service
            value: rke2-coredns

  # Define inbound (ingress) network traffic rules
  ingress:
    # Allow incoming SSL traffic on port 443
    - action: allow
      applications: [SSL]
      name:
